Ground-mounted photovoltaic constructions

Since 2009 we have been supplying structures for
ground photovoltaic power plants of all types

Our offer

Use cases

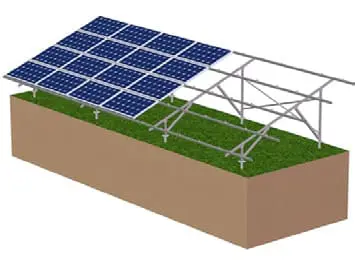

Industrial photovoltaic panel designs use durable materials to ensure stability and resistance to weather and mechanical stress. They are designed to optimise the orientation and inclination of the panels to extract the maximum amount of solar energy. Careful planning and technical precision in the construction of these structures play a key role in achieving high efficiency and long-term reliability of the PV system.

The new dimensional standard for photovoltaic panels brings new challenges.

a brand new design for bifacial panels minimizes rear shielding
optimized price-performance ratio
fast installation
high stability
smooth delivery
driven and drilled piles
ideal for connecting inverters 200-330kW - 8/16 strings

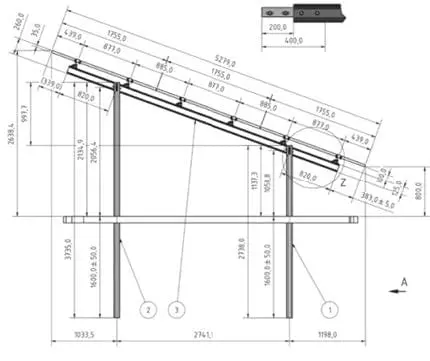

Construction 13x4H Utility Bifacial

4 industrial bifacial panels horizontally. Underground section screws or piles

Design for panels 640–690 Wp with dimensions 2384 x 1303 mm

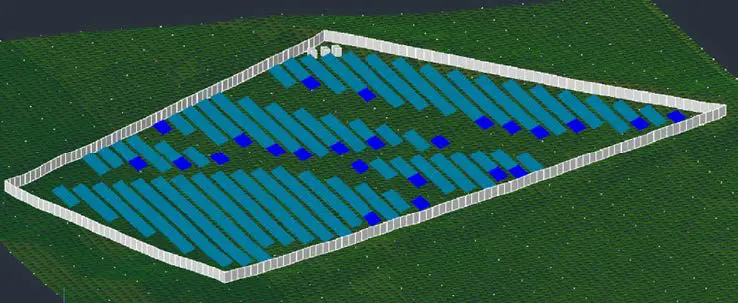

We will lay out different table sizes for maximum use of the plot, for specific inverters

We distinguish tables of half dimensions by colour

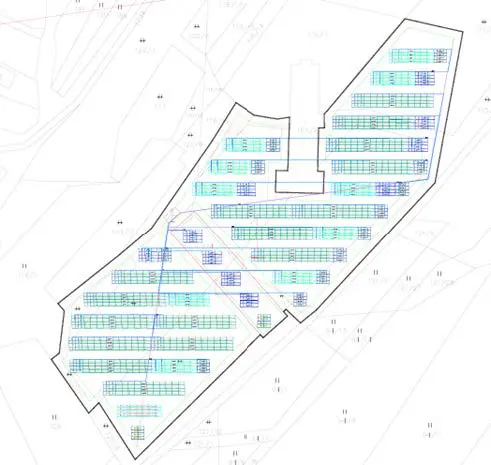

Layout of table structures on a power plant with multiple protection zones

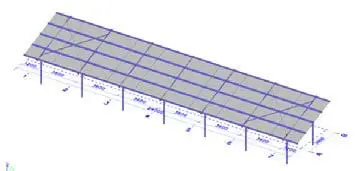

We calculate statics even for non-standard table
dimensions

Example from static calculation

Construction 13x4H Utility Bifacial

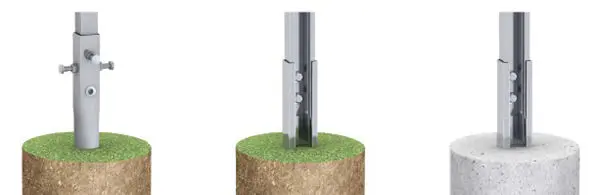

Anchoring

Screws

Averages 57–108 mm
Thicknesses 2–5 mm
Lengths 550–5000 mm

Hammered piles

Shape C
Thicknesses 2–4 mm
Steel: S235+Z, S220GD+Z,
S355+Z, S320GD+Z

Design parameters for bifacial panels

Galvanised pre-galvanised 25 micron construction
Angle 10-30°, dilatation max after 24 m
600–800 mm minimum height
Steel S235+Z, S220GD+Z, S355+Z, S320GD+Z
Warranty 10 years
Service 30 years
