Ground-mounted photovoltaic constructions
Since 2009 we have been supplying structures for ground photovoltaic power plants of all types

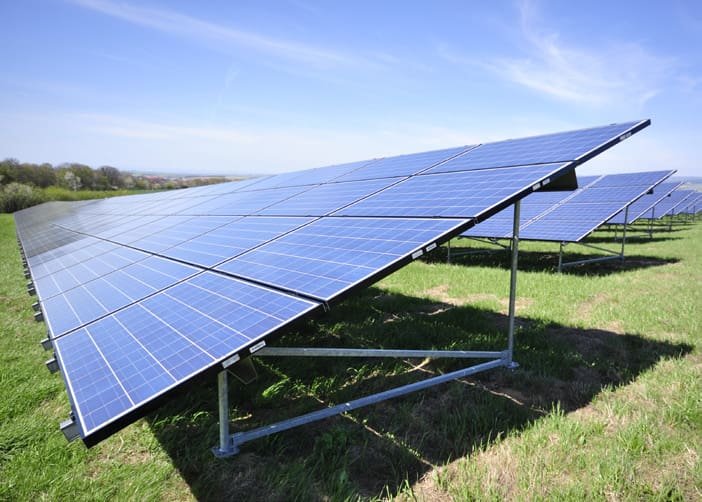

Ground-mounted photovoltaic constructions
Overview
The new dimensional standard for photovoltaic panels brings new challenges
Industrial photovoltaic panel structures use durable materials to ensure stability and resistance to weather and mechanical stress. They are designed to optimise the orientation and inclination of the panels to extract the maximum amount of solar energy. Careful planning and technical precision in their construction play a key role in the high efficiency and long-term reliability of the PV system.
Construction 13×4H Utility Bifacial
- A brand-new design for bifacial panels minimises rear shielding
- Optimised price-performance ratio
- Fast installation
- High stability
- Smooth delivery
- Driven and drilled piles
- Ideal for connecting 200–330 kW inverters (8/16 strings)
Design parameters for bifacial panels
- Pre-galvanised construction, 25 microns
- Angle 10–30°, expansion joint at most every 24 m
- Minimum height 600–800 mm
- Steel S235+Z, S220GD+Z, S355+Z, S320GD+Z
- Warranty 10 years
- Service 30 years
Anchoring
- Screws: diameters 57–108 mm, thicknesses 2–5 mm, lengths 550–5,000 mm
- Hammered piles: C shape, thicknesses 2–4 mm
- Steel S235+Z, S220GD+Z, S355+Z, S320GD+Z
Construction 13×4H Utility Bifacial

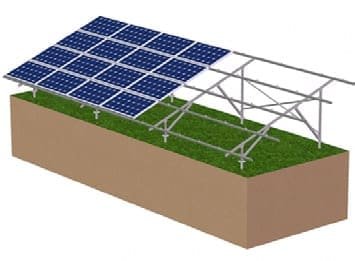

Four industrial bifacial panels horizontally, anchored with screws or piles ↗

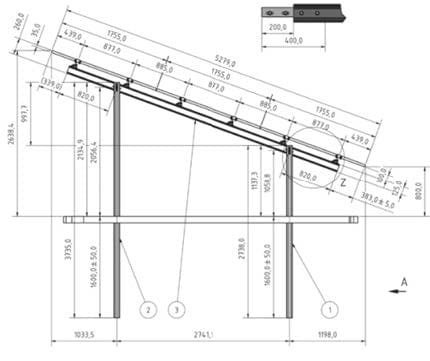

Design for 640–690 Wp panels measuring 2,384 × 1,303 mm ↗

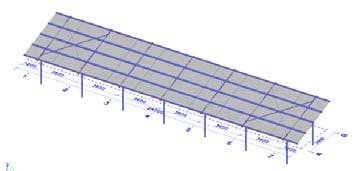

Different table sizes for the maximum use of the plot and specific inverters ↗

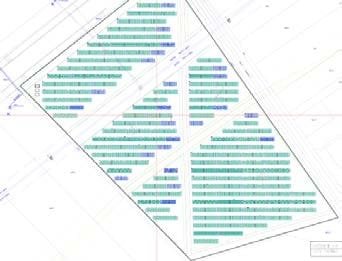

Half-size tables distinguished by colour ↗

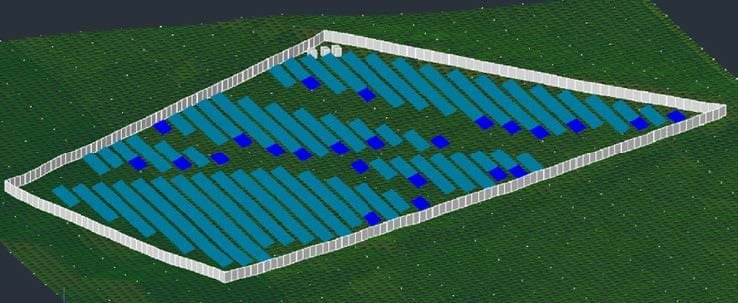

Table layout on a power plant with several protection zones ↗

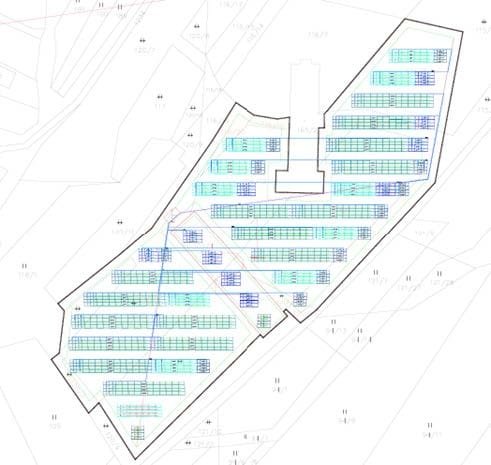

Static calculations even for non-standard table dimensions ↗
An example from a static calculation ↗
Construction detail ↗
Construction detail ↗
Construction detail ↗

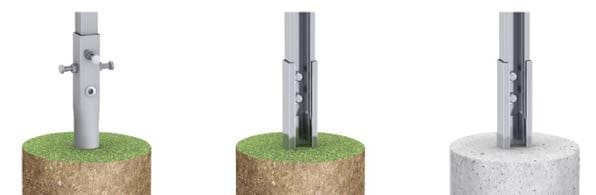

Anchoring with screws and hammered piles ↗
